제품소개 > Shaft Sealings

Gland Packings

회전하는 축의 기밀유지는 중요한 문제입니다.
Seepex는 펌프의 사용압력, 유체의 성질 등에 따른 다양한 형태의 실링방법을 확보하고
있습니다.

By default, pumps of product groups N and T are sealed with gland packings, the materials and designs of which suit the respective application.

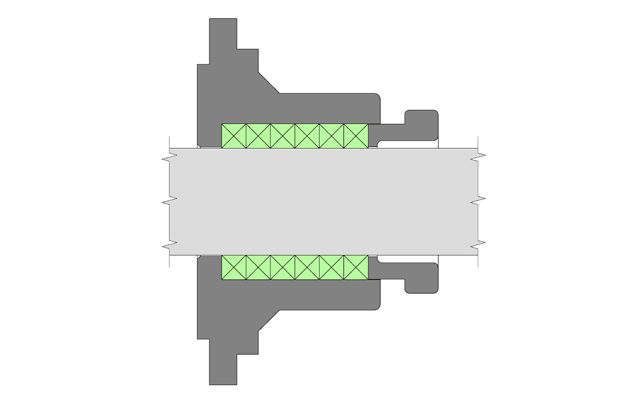

				Gland Packings A

				Conveying Materials \| Variant 1: Free of solids \|Variant 2: Containing solids, abrasive

				Pressure Range \| Variant 2: -0.3 to +0.3 bar

				Zoom

Description

Note
Cost-efficient standard seal



				Gland Packings C

				Conveying Materials \| Containing solids, abrasive

				Pressure Range \| -0.5 to +2 bar

				Zoom

Description

Note
Sealing liquid pressure at least 0.5 to 1 bar above the pressure to be sealed The sealing liquid must be compatible to the conveying medium.

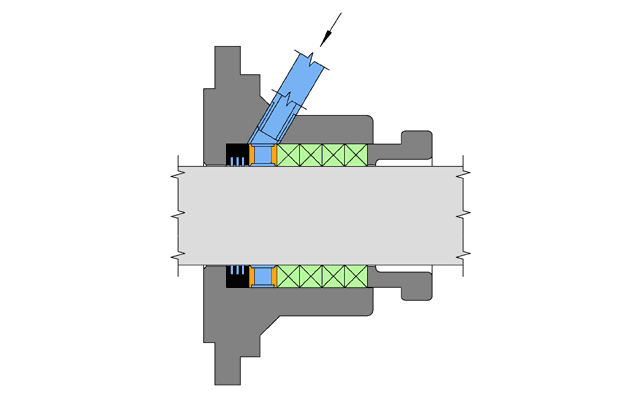

				Gland Packings V

				Conveying Materials \| Containing solids, abrasive

				Pressure Range \| 1 to +2 bar

				Zoom

Description

Gland packing with lantern ring inside and a labyrinth seal on the upstream side

Note
Like code C, amount of sealing water can be controlled and adjusted

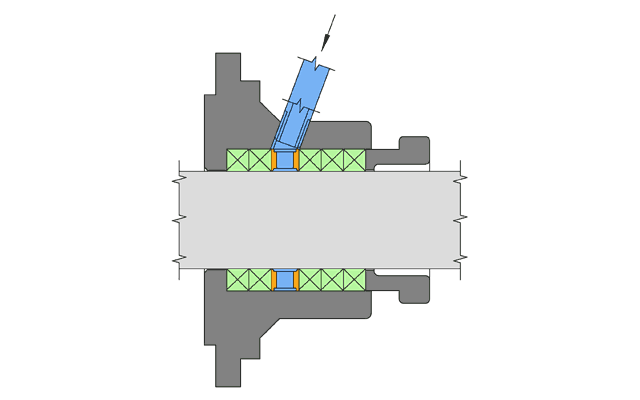

				Gland Packings E

				Conveying Materials \| Free of solids to containing solids

				Pressure Range \| -0.85 to +1 bar

				Zoom

Description

Note
Like code C, amount of sealing water reduced for vacuum operation

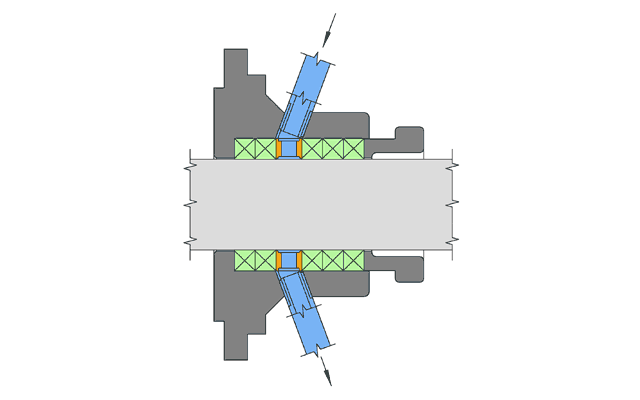

				Gland Packings F

				Conveying Materials \| Heat sensitive, shear sensitive, free of solids to containing solids

				Pressure Range \| -0.85 to +1 bar

				Zoom

Description

Note
Like code E, dissipation of the frictional heat generated via a second connection

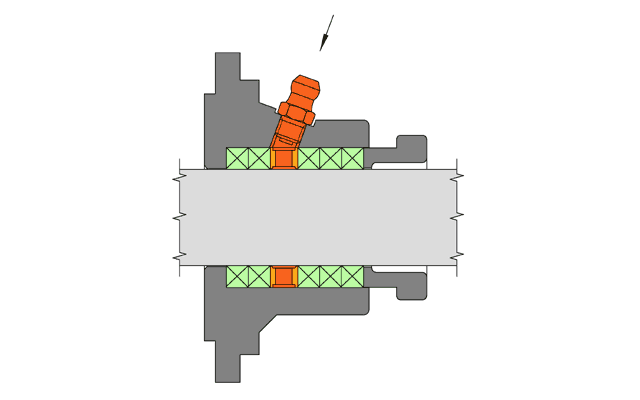

				Gland Packings S

				Conveying Materials \| Containing solids, abrasive

				Pressure Range \| -0.5 to +0.5 bar

				Zoom

Description

Note
Used when there is no sealing water supply, lubrication via lubricating device or grease pump
